Electronic Steering Column Lock Control Module -J764-, Removing And Installing: Installing
WARNING: This page is about a different variant/trim than selected.
Installation is the reverse of removal, with special attention to the following:

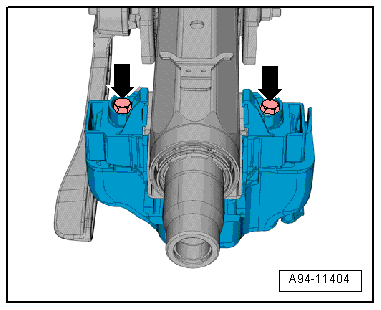

-- Secure the Electronic Steering Column Lock Control Module -J764- with new shear bolts -arrows-.
-- Tighten the shear bolts -arrows- evenly until the bolt heads shear off.
-- If the Electronic Steering Column Lock Control Module -J764- was replaced, then the Electronic Steering Column Lock Control Module -J764- must be adapted by selecting the function "Replace" using the Vehicle Diagnostic Tester in "Guided Functions".
