Overview - Center Armrest

WARNING: This page is about a different variant/trim than selected.

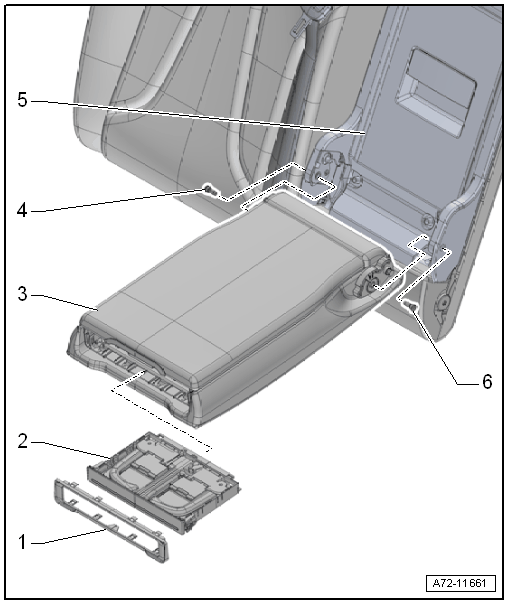

Fig 1: Exploded View Of Center Armrest

Courtesy of AUDI OF AMERICA, LLC

Trim
- For the cupholder
- Removing and Installing. Refer to CUPHOLDER, REMOVING AND INSTALLING .
- Press on until it engages audibly
Cupholder
- Removing and Installing. Refer to CUPHOLDER, REMOVING AND INSTALLING .
- Install and press on it until it audibly latches
Center Armrest
- Removing and Installing. Refer to CENTER ARMREST, REMOVING AND INSTALLING .
Bolt
- 12 Nm
Lid
- For pass-through
- Removing and Installing. Refer to PASS-THROUGH DOOR, REMOVING AND INSTALLING .
Bolt
- 12 Nm
