Locking Mechanism Trim, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

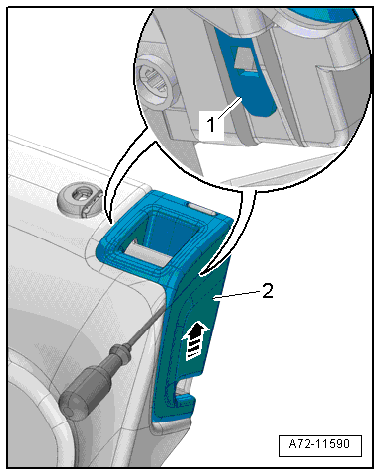

GWWA72-11590Courtesy of AUDI OF AMERICA, LLC

-- Unlock the rear seat backrest.

-- Make sure the button (indicator) is in the >>up  << position.

-- Unclip the two tabs -1- with a screwdriver from the locking tab on the retainer.

-- Remove the trim -2- upward from the retainer -arrow- and remove.
