Overview - Seat Pan, Side Sill/Tunnel Side Seat Side Trim On Manual Front Seat

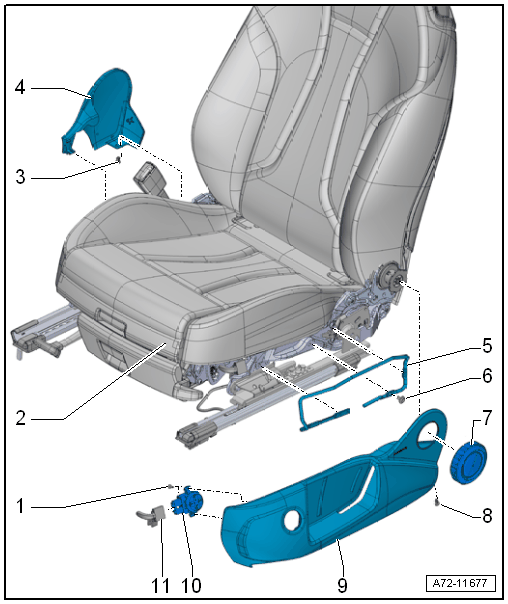

Fig 1: Exploded View Of Seat Side Trim Sill Panel/Tunnel-Side On Manual Front Seat

Courtesy of AUDI OF AMERICA, LLC

1. Bolt
   • 0.4 Nm
   • Quantity: 2
2. Front Seat
3. Expanding Rivet
4. Tunnel Side Seat Side Trim
   • Removing and Installing. Refer to SEAT SIDE TRIM ON TUNNEL SIDE, REMOVING AND INSTALLING .
5. Bracket
   • For seat side trim on side sill side
   • Removing and Installing. Refer to SEAT SIDE TRIM ON SIDE SILL SIDE, REMOVING AND INSTALLING, MANUAL FRONT SEAT .
6. Bolt
   • 7.5 Nm
   • Quantity: 3
7. Hand Wheel
   • For backrest adjustment
   • Removing and Installing. Refer to BACKREST ADJUSTMENT HAND WHEEL, REMOVING AND INSTALLING .
   • Press on until it engages audibly
8. Expanding Rivet
9. Seat Side Trim on Side Sill
   • Removing and Installing. Refer to SEAT SIDE TRIM ON SIDE SILL SIDE, REMOVING AND INSTALLING, MANUAL FRONT SEAT .
10. Driver Seat Lumbar Support Adjustment Switch -E176-
    • Front passenger side Front Passenger Seat Lumbar Support Adjustment Switch -E177-
    • Removing and Installing. Refer to DRIVER AND FRONT PASSENGER SEAT LUMBAR SUPPORT ADJUSTMENT SWITCH -E176- / -E177-, REMOVING AND INSTALLING .
11. Connector
