Overview - Headrest, Super Sport Seat
WARNING: This page is about a different variant/trim than selected.
NOTE:
The headrest is permanently attached to the cushion, and can only be removed with the cushion.

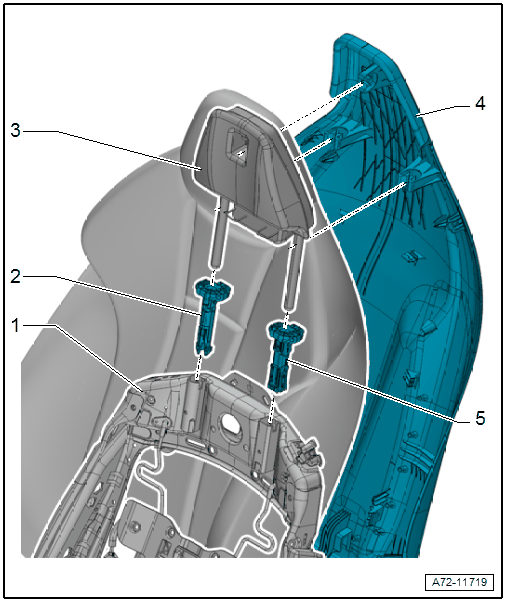

- Backrest Frame
- Right Headrest Guide
- With release button
- Removing and Installing. Refer to HEADREST GUIDE, REMOVING AND INSTALLING .
- Headrest
- Embedded in the cushion, separating the headrest and the cushion is not possible.
- Removing and Installing. Refer to BACKREST COVER AND CUSHION, REMOVING AND INSTALLING, SUPER SPORT SEAT .
- Must be correctly locked in the headrest guides
- Backrest Cover
- Removing and Installing. Refer to BACKREST COVER, REMOVING AND INSTALLING, SUPER-SPORT SEAT .
- Attach under the backrest frame and then press on it until it audibly locks
- Clipped in the headrest
- Left Headrest Guide
- With release button
- Removing and Installing. Refer to HEADREST GUIDE, REMOVING AND INSTALLING .
