Lumbar Support Adjustment Motors -V125- / -V126- / -V129- / -V130-, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
WARNING:
- Follow all safety precautions when working on pyrotechnic components. Refer to SAFETY PRECAUTIONS WHEN WORKING WITH PYROTECHNIC COMPONENTS .
- Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". For example, this can be done by briefly touching the door striker.
-- Remove the front seat. Refer to FRONT SEAT, REMOVING AND INSTALLING .
-- Fasten the front seat on the :VAS6136 . Refer to FRONT SEAT, MOUNTING ON FIXTURE FOR SEAT REPAIR .
-- Remove the backrest cover with the backrest cushion. Refer to BACKREST COVER AND CUSHION, REMOVING AND INSTALLING .

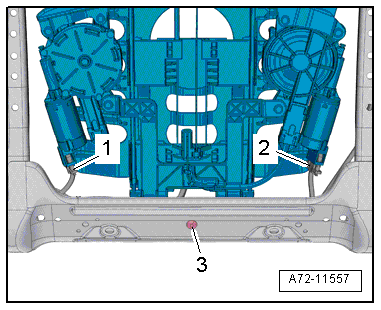

-- Disconnect the connectors -1 and 2- at the lumbar support forward/back and height adjustment motors.
WARNING:
Risk Of Eye Injury.
- Wear Protective Eyewear!
-- Drill out the rivet -3-.
-- Disconnect the cable tie for the backrest release cable.

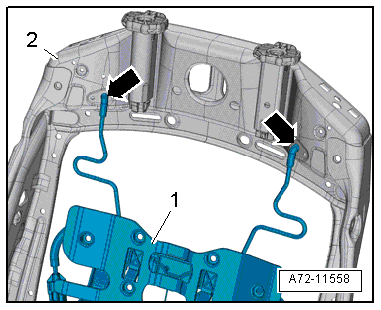

-- Move the lower lumbar support -1- forward, disengage it from the backrest frame -2- -arrows- and remove it.
