Telephone BASEPLATE -R126-, Removing And Installing, Through My 2016: Removing
WARNING: This page is about a different variant/trim than selected.
-- Turn off the ignition and all electrical equipment and remove the ignition key.
-- Remove The Front Center Console Storage Compartment. Refer to OVERVIEW - CENTER CONSOLE / FRONT CENTER CONSOLE STORAGE COMPARTMENT, REMOVING AND INSTALLING .
-- Release and disconnect the connectors from the Telephone Baseplate -R126-.

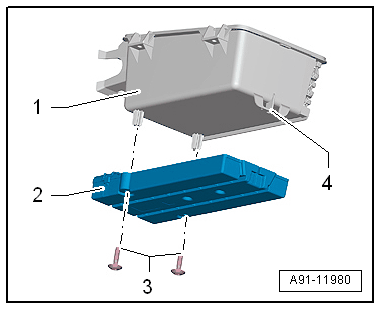

-- Remove the screws -3- from the Telephone Baseplate -R126- -2-.
-- Tilt the Telephone Baseplate -R126- -2- out of the hook -4- and remove it from the storage compartment -1-.
