Telephone BASEPLATE -R126-, Removing And Installing, From My 2017: Removing
WARNING: This page is about a different variant/trim than selected.
-- Turn off the ignition and all electrical equipment and remove the ignition key.
-- Remove the Cellular Telephone -R54-.
The Telephone Baseplate -R126- is only clipped in the storage compartment.

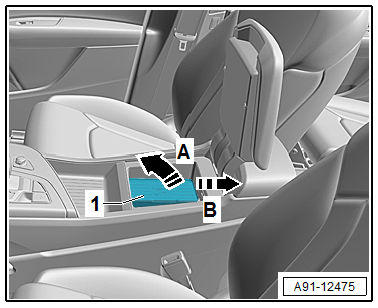

-- Push the Telephone Baseplate -R126- -1- with the :3409 upward in direction of -arrow A-, and then pull it toward the rear in direction of -arrow B- and remove it from the storage compartment.
-- Release and disconnect the connectors.
