Cellular Telephone Amplifier -R86-, Removing And Installing, Convertible: Removing
WARNING: This page is about a different variant/trim than selected.
-- Turn off the ignition and all electrical equipment and remove the ignition key.
-- Remove the luggage compartment right side trim panel. Refer to OVERVIEW - LUGGAGE COMPARTMENT SIDE TRIM PANEL / LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .

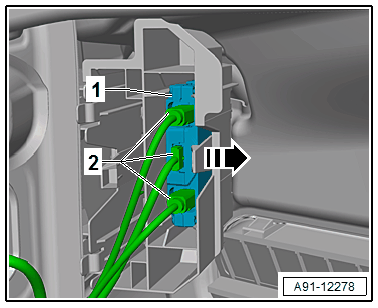

The Cellular Telephone Amplifier -R86- -1- is locked into place in the bracket.
-- Release and disconnect the connectors -2- from the Cellular Telephone Amplifier -R86- -1-.
-- Press the catch on the bracket in direction of -arrow- and remove the Cellular Telephone Amplifier -R86- -1- from the bracket.
