TV Tuner, Removing And Installing, 3-Door And 5-Door Vehicles: Removing

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Remove the luggage compartment right side trim panel. Refer to OVERVIEW - LUGGAGE COMPARTMENT SIDE TRIM PANEL / LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .

-- Disconnect and remove all connectors from the TV Tuner -R78-.

-- Insert the :VAS6223/9  -1- onto the MOST bus connector -2-.

Fig 1: Fiber-Optic Cable Harness Connector And Protective Cap For Cable Connector VAS 6223/9

Courtesy of AUDI OF AMERICA, LLC

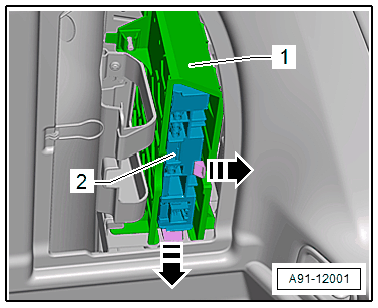

-- Press the catches -arrows- outward on the bracket -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the TV Tuner -R78- -2- from the bracket -1-.
