Subwoofer -R211-, Removing And Installing, Sedan: Removing
WARNING: This page is about a different variant/trim than selected.
-- Turn off the ignition and all electrical equipment and remove the ignition key.
-- Remove the rear shelf. Refer to REAR SHELF, REMOVING AND INSTALLING .

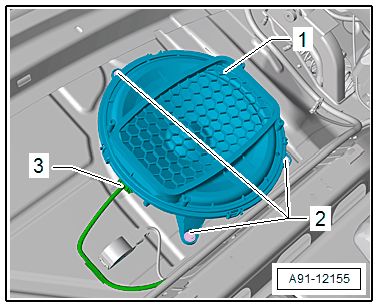

-- Release and disconnect the connector -3- from the Subwoofer -R211- -1-.
-- Remove the screws -2- from the Subwoofer -R211- -1-.
-- Remove the Subwoofer -R211- -1- upward.
