Front Midrange Speaker, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Remove the front door trim panel. Refer to FRONT DOOR TRIM PANEL, REMOVING AND INSTALLING .

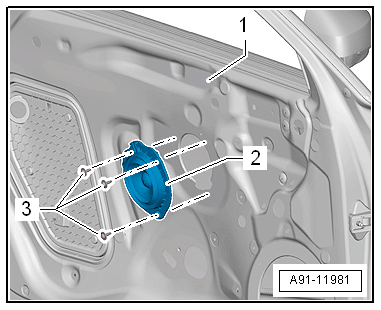

-- Release and disconnect the connector from the Left Front Midrange Speaker -R103- -2-.

GWWA91-11981Courtesy of AUDI OF AMERICA, LLC

-- Remove the screws -3- from the Left Front Midrange Speaker -R103- -2-.

-- Remove the Left Front Midrange Speaker -R103- -2- from the door -1-.
