Left/Right Effects Speaker -R209- / -R210-, Removing And Installing, Convertible: Removing

WARNING: This page is about a different variant/trim than selected.

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Remove the side trim panel insert. Refer to SIDE TRIM PANEL, REMOVING AND INSTALLING .

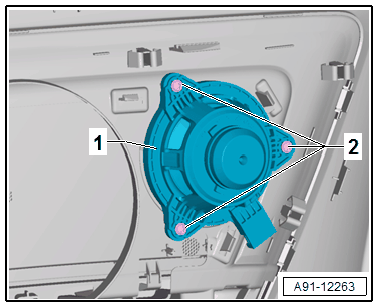

-- Remove the screws -2- from the Left Effects Speaker -R209- -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the Left Effects Speaker -R209- -1- from the trim on the side trim panel.
