Left/Right Effects Speaker -R209- / -R210-, Removing And Installing, 5-Door Vehicles: Removing
WARNING: This page is about a different variant/trim than selected.
-- Turn off the ignition and all electrical equipment and remove the ignition key.
-- Remove the D-pillar trim panel. Refer to D-PILLAR TRIM PANEL, REMOVING AND INSTALLING .

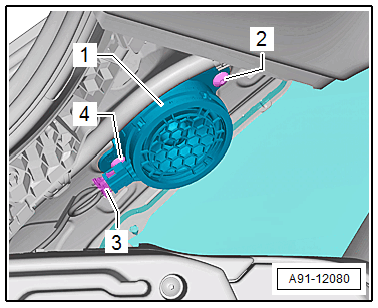

-- Release and disconnect the connector -3- from the Left Effects Speaker -R209- -1-.
-- Remove the bolts -2 and 4- from the Left Effects Speaker -R209- -1-.
-- Remove the Left Effects Speaker -R209- -1- from the D-pillar.
