Left/Right Effects Speaker -R209- / -R210-, Removing And Installing, 3-Door Vehicles: Removing
WARNING: This page is about a different variant/trim than selected.
-- Turn off the ignition and all electrical equipment and remove the ignition key.
-- Remove the C-pillar trim panel. Refer to C-PILLAR TRIM PANEL, REMOVING AND INSTALLING .
-- Release and disconnect the connector from the Left Effects Speaker -R209-.

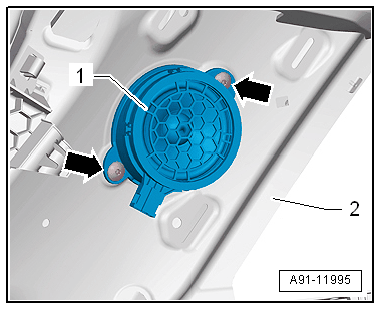

-- Remove the bolts -arrows- from the Left Effects Speaker -R209- -1-.
-- Remove the Left Effects Speaker -R209- -1- from the C-pillar -2-.
