Left & Right Effects Speaker -R209- / -R210-, Removing And Installing, Sedan: Removing

WARNING: This page is about a different variant/trim than selected.

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Remove the speaker trim -1- from the rear shelf using the Trim Removal Wedge:3409 .

Courtesy of AUDI OF AMERICA, LLC

-- Lift the speaker trim -1- until the connector on the Left Effects Speaker -R209- is accessible.

-- Release and disconnect the connector from the Left Effects Speaker -R209-.

-- Remove the speaker trim -1- with the Left Effects Speaker -R209-.

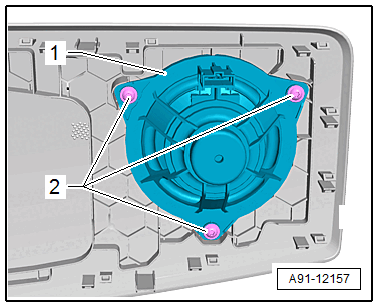

-- Remove the screws -2- from the Left Effects Speaker -R209- -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the Left Effects Speaker -R209- -1- from the speaker trim.
