Rearview Camera System Control Module -J772-, Removing And Installing, Sedan, Through My 2016: Removing
WARNING: This page is about a different variant/trim than selected.
-- Turn off the ignition and all electrical equipment and remove the ignition key.
-- Remove The Luggage Compartment Right Side Trim Panel. Refer to OVERVIEW - LUGGAGE COMPARTMENT SIDE TRIM PANEL / LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .

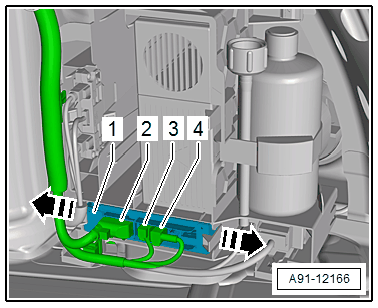

The Rearview Camera System Control Module -J772- -1- is only clipped into the bracket.
-- Release and disconnect the connectors -2 through 4- from the Rearview Camera System Control Module -J772- -1-.
-- Press the catches in direction of -arrow- and remove the Rearview Camera System Control Module -J772- -1- from the bracket.
