Rearview Camera System Control Module -J772-, Removing And Installing, Sedan, Through My 2016: Notes
WARNING: This page is about a different variant/trim than selected.

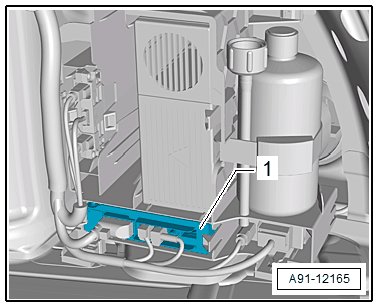

The Rearview Camera System Control Module -J772- -1- is located behind the right luggage compartment side trim panel.
 Courtesy of AUDI OF AMERICA, LLC
|
NOTE:
If replacing the control module, select the "Replace control module" function for the corresponding control module on Vehicle Diagnostic Tester.
