Rearview Camera -R189-, Removing And Installing, Convertible: Removing
WARNING: This page is about a different variant/trim than selected.
-- Turn off the ignition and all electrical equipment and remove the ignition key.
-- Remove the rear lid trim panel. Refer to REAR LID LOWER TRIM PANEL, REMOVING AND INSTALLING .
The Rearview Camera -R189- has a trailing cable. The vehicle wiring harness couplings are located in the rear lid.

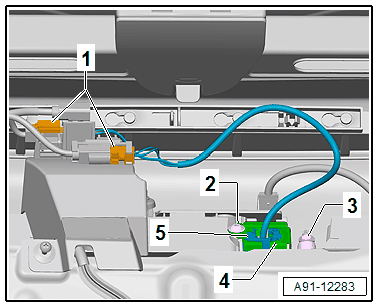

-- Release and disconnect the connectors -1-.
-- Remove the screw -2-.
-- Remove the nut -3-.
-- Remove the retaining plate -4-.
-- Remove the Rearview Camera -R189- -5- from the grip piece.
