Overview - Rearview Camera System, Through My 2016
The rear view camera system assists the driver when driving in reverse by providing the driver with an image of the traffic situation behind the vehicle via the Front Information Display Control Head -J685-.
The rear view camera system is switched on when engaging the reverse gear. The system can be activated manually by pressing the Parking Aid Button -E266- in the instrument panel (optional).
The rear view camera system consists of the following components:
- Rearview Camera -R189-
- Rearview Camera System Control Module -J772-
- Information Electronics Control Module 1 -J794-
- Steering wheel with Steering Angle Sensor -G85-
Other control modules may be installed as optional equipment.
It is not permitted to install an auxiliary license plate for vehicles with rear view camera system as it could impair the function of the rear view camera system.
Fault finding is performed via "Guided Fault Finding" using Vehicle Diagnostic Tester.

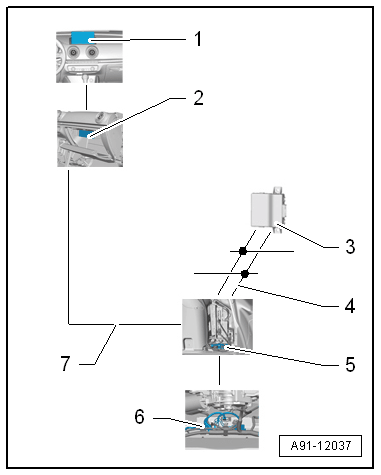

- Front Information Display Control Head -J685- in Center of the Instrument Panel
- Information Electronics Control Module 1 -J794- in the Glove Compartment
- Data Bus On Board Diagnostic Interface -J533- behind the driver side compartment
- CAN bus, Infotainment
- Rearview Camera System Control Module -J772- behind the luggage compartment right side trim panel
- Rearview Camera -R189- in the rear lid
- FBAS wire to the Information Electronics Control Module 1 -J794-
