Emergency Call Button -E276-: Removing

WARNING: This page is about a different variant/trim than selected.

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Remove the Front Interior Lamp -W1-. Refer to FRONT INTERIOR LAMP -W1-, REPLACING .

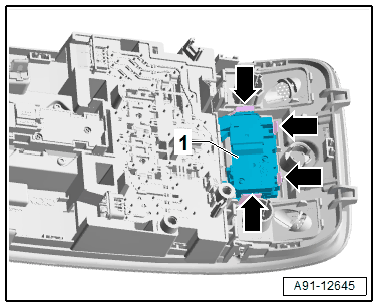

-- Release the retaining tabs -arrows- on the Front Interior Lamp -W1-.

GWWA91-12645Courtesy of AUDI OF AMERICA, LLC

-- At the same time, tilt the Emergency Call Button -E276- -1- out of the Front Interior Lamp -W1-.
