Overview - External Multimedia Device Connection, From My 2017

WARNING: This page is about a different variant/trim than selected.

There are several versions of the connection for external multimedia devices:

AUX IN jack, UE3
AUX IN jack and USB charging port, UE4
AUX IN jack and two USB ports with charging and data transfer function (Audi music interface), UE7
AUX IN jack and two USB ports with charging and data transfer function (Audi smartphone interface), UI2

On versions with two USB ports with charging and data transfer functions (UE7/UI2), there are the following versions for dividing both USB ports:

Both USB ports are in the center console storage compartment under the front center armrest
One USB port is in the center console storage compartment under the front center armrest and one USB port is in the front center console storage compartment

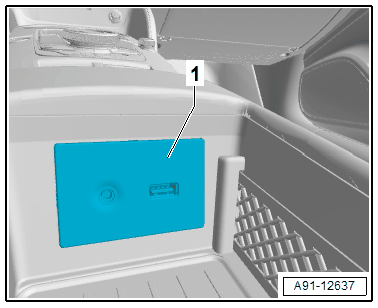

Fig 1: External Audio Source Connection -R199- Component Location

Courtesy of AUDI OF AMERICA, LLC

The External Audio Source Connection -R199- -1- is in the center console storage compartment under the front center armrest.

Either only an AUX IN jack (UE3) is installed or an AUX IN jack and a USB charging port (UE4) is installed.

Fig 2: USB Distributor -R293- Component Location

Courtesy of AUDI OF AMERICA, LLC

The USB Distributor -R293- -1- is located in the center console storage compartment under the front center armrest.

There is either an AUX IN jack and a USB port with charging and data transfer functions or an AUX IN jack and two USB ports with charging and data transfer functions.

Fig 3: USB Connection 1 -U41- Component Location

Courtesy of AUDI OF AMERICA, LLC

The USB Connection 1 -U41- -1- is located in the front center console storage compartment.

The USB Connection 1 -U41- -1- is equipped, if the USB Distributor -R293- only has one USB port in the center console storage compartment under the front center armrest.
