External Audio Source Connection -R199-, Removing And Installing, From My 2017: Removing
WARNING: This page is about a different variant/trim than selected.
-- Turn off the ignition and all electrical equipment and remove the ignition key.
-- Remove The Center Console Insert. Refer to CENTER CONSOLE INSERT, REMOVING AND INSTALLING .

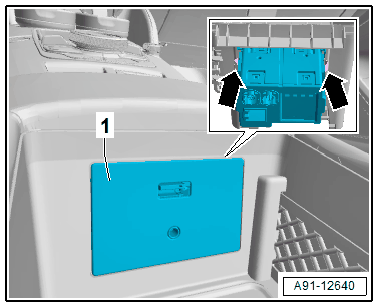

-- Through the opening in the center console, press the clips -arrows- on the external multimedia device connection -1- together.
-- At the same time, push the external multimedia device connection -1- toward the rear out of the center console storage compartment.
-- Release and disconnect the connectors from the external multimedia device connection -1-.
