Aux In - USB Connection BASEPLATE -R193-, Through My 2016

WARNING: This page is about a different variant/trim than selected.
NOTE:

Unlisted connector terminals are not assigned.

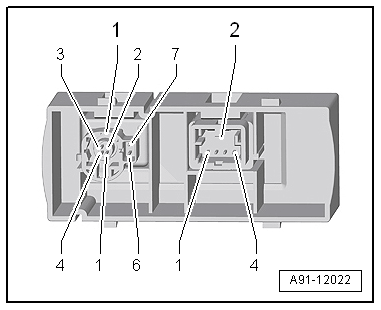

Fig 1: AUX IN - USB Connection Baseplate -R193-
GWWA91-12022Courtesy of AUDI OF AMERICA, LLC
  1. 7-Pin Connector -T7-
  2. 4-Pin Connector -T4s-
Fig 2: 1 - 7-Pin Connector -T7-
GWWA91-12022Courtesy of AUDI OF AMERICA, LLC

All pins are connected to the Information Electronics Control Module 1 -J794-.

  1. Ground
  2. D (-)
  3. Not Assigned
  4. D (+)
  5. Ground Shielding
  6. USB, +5V
  7. USB, Ground
Fig 3: 2 - 4-Pin Connector -T4s-
GWWA91-12022Courtesy of AUDI OF AMERICA, LLC

All pins are connected to the Information Electronics Control Module 1 -J794-.

  1. LF right
  2. LF ground
  3. LF left
  4. LF ground
