Ami - USB Connection BASEPLATE -R193-, Through My 2016

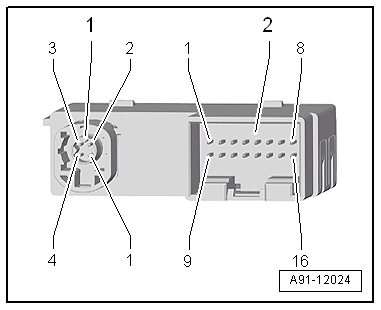

Fig 1: AMI Connector - USB Connection Baseplate -R193-

Courtesy of AUDI OF AMERICA, LLC

1. 4-Pin Connector -T4u-
2. 16-Pin Connector -T16m-

Fig 2: 1 - 4-Pin Connector -T4u-

Courtesy of AUDI OF AMERICA, LLC

All pins are connected to the Information Electronics Control Module 1 -J794-.

1. Ground
2. D (-)
3. Detect
4. D (+)

Fig 3: 2 - 16-Pin Connector -T16m-

Courtesy of AUDI OF AMERICA, LLC

All pins are connected to the Information Electronics Control Module 1 -J794-.

1. LF ground
2. LF right
3. Not Assigned
4. Not Assigned
5. iPod, ACC Power
6. Detect
7. USB, +5 V
8. USB, Ground
9. LF left
10. LF ground Shielding
11. CVBS cable (+)
12. CVBS cable (-)
13. iPod data
14. iPod data
15. Terminal 30
16. Terminal 31
