Antenna Wire Coupling Point, 3-And 5-Door

WARNING: This page is about a different variant/trim than selected.

A coupling is installed on the right C/D-pillar underneath the Right Effects Speaker -R210- for the Antenna Amplifier -R24-, Antenna Amplifier 2 -R111- and Antenna Amplifier 3 -R112- wires.

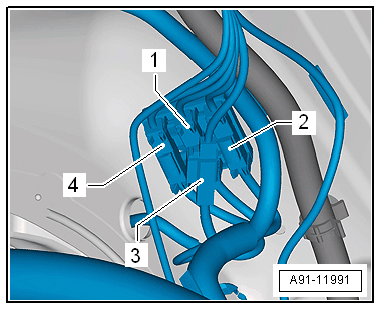

Fig 1: Coupling Point
GWWA91-11991Courtesy of AUDI OF AMERICA, LLC
  1. Antenna Amplifier 2 -R111-
  2. Antenna Amplifier 3 -R112-
  3. Rearview Camera -R189-
  4. Antenna Amplifier -R24-
