Bumper Antennas, Removing And Installing, 3-Door And 5-Door: Removing

WARNING: This page is about a different variant/trim than selected.

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Remove the rear bumper cover. Refer to REAR BUMPER COVER, REMOVING AND INSTALLING .

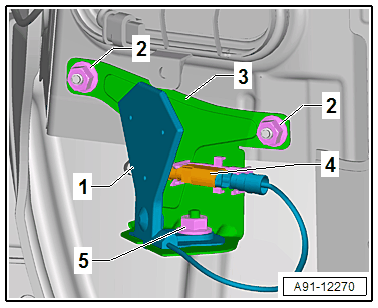

-- Release and disconnect the connector -4- for the left bumper antenna -1-

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Depending on the version of the installed bumper antenna, the connector -4- may be located directly on the bumper antenna -1-.

-- Remove the nut -5- for the left bumper antenna -1-.

-- Remove the left bumper antenna -1- from the bracket -3-.

-- Remove the nuts -2- for the bracket -3-

-- Remove the bracket -3- from the vehicle body.
