Speaker Trim, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.

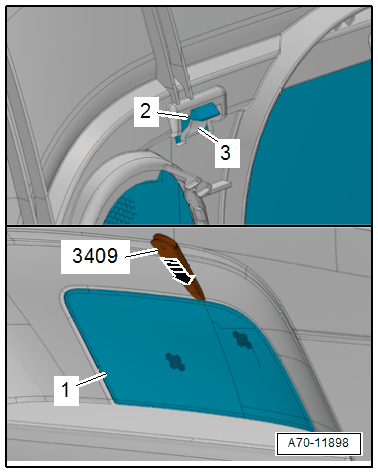

-- Push the catches -2- of the speaker trim -1- using the :3409 with force downward against the collar -3- -arrow-, until the catches release from the side trim.

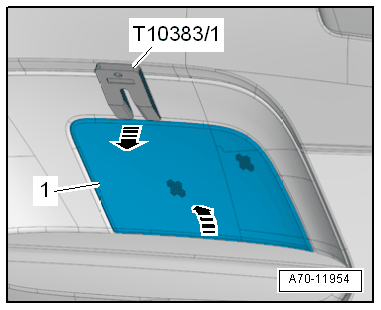

-- Carefully pry the rest of the speaker trim catches -1- with the :T10383/1 along the seam from the side trim and remove upward -arrows-.
