Rear Shelf, Removing And Installing: Removing

Courtesy of AUDI OF AMERICA, LLC

-- Fold the rear seat backrest forward.

-- Remove the D-pillar trim panel. Refer to D-PILLAR TRIM PANEL, REMOVING AND INSTALLING, SEDAN .

-- Vehicles equipped with a subwoofer: unclip the speaker trim -1- using the :T10383/1  -arrow-.

-- Vehicles equipped with a speaker: disconnect the connector and remove the speaker trim forward.

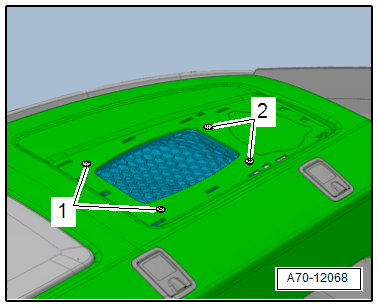

-- Vehicles equipped with a subwoofer: remove screws -1, and 2-.

Courtesy of AUDI OF AMERICA, LLC

-- Unclip the rear shelf -1- at the front using the :80-200  -A arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Pull the rear shelf forward -arrow B- and remove it.
