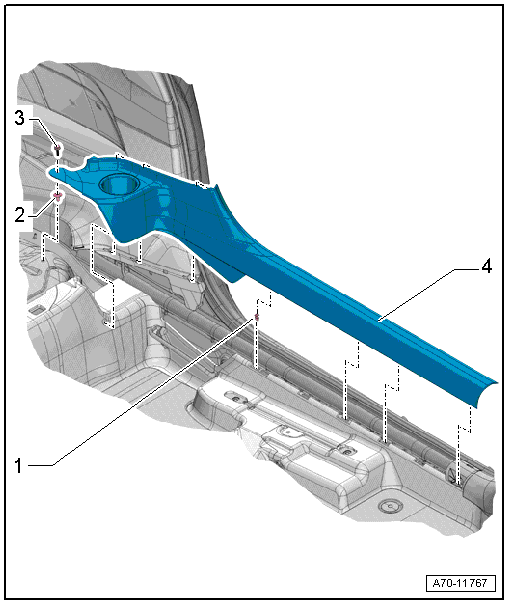

Overview - Sill Panel Strip, A3
WARNING: This page is about a different variant/trim than selected.
- Clip
- Quantity: 4
- Insert in the sill panel
- Remove any remaining clips in the body mounting points using the Omega Clip Tool :T40280 . To install, insert into the sill panel strip.
- Replace damaged or deformed clips
- Grommet
- Install inside the body
- Expanding Clip
- Sill Panel
- Removing and Installing. Refer to SILL PANEL STRIP, REMOVING AND INSTALLING, A3 .
- Engage the sill panel in the side trim panel.
- Press on until it engages audibly
- Stretch the door seal lip over
