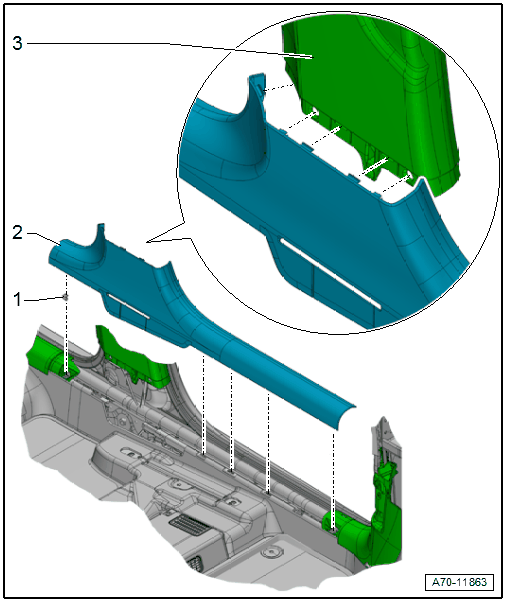

Overview - Front Sill Panel, A3 E-Tron/Sedan
WARNING: This page is about a different variant/trim than selected.
- Clip
- Quantity: 5
- Insert in the sill panel
- Remove any remaining clips in the body mounting points using the Omega Clip Tool :T40280 . To install, insert into the sill panel strip.
- Replace damaged or deformed clips
- Sill Panel
- Removing and Installing. Refer to FRONT SILL PANEL, REMOVING AND INSTALLING, A3 E-TRON/SEDAN .
- Engage the sill panel strip in the B-pillar trim.
- Press on until it engages audibly
- Stretch the door seal lip over
- B-Pillar Lower Trim Panel
