Overview - Rear Shelf

WARNING: This page is about a different variant/trim than selected.

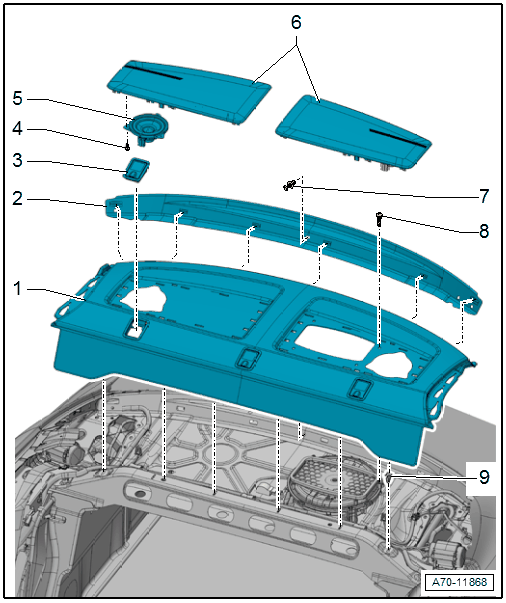

Fig 1: Exploded View Of Rear Shelf

Courtesy of AUDI OF AMERICA, LLC

Rear Shelf
- Engaged in the rear window frame
- Removing and Installing. Refer to REAR SHELF, REMOVING AND INSTALLING .
- Press on until it engages audibly
Trim Panel
- Removing and Installing. Refer to REAR SHELF, REMOVING AND INSTALLING .
Cap
- For the child seat anchor
- Equipped on some models
- Quantity: 3
- Removing and Installing. Refer to REAR CHILD SEAT ANCHOR COVER, REMOVING AND INSTALLING, REAR SHELF SEDAN .
- Press on until it engages audibly
Bolt
- Quantity: 3
- Tightening specification. Refer to COMPONENT LOCATION OVERVIEW - SOUND SYSTEM .
Speaker
- Equipped on some models
- Quantity: 2
- Removing and Installing. Refer to COMPONENT LOCATION OVERVIEW - SOUND SYSTEM / SOUND SYSTEM .
Speaker Trim
- Equipped on some models
- Removing and Installing. Refer to REAR SHELF, REMOVING AND INSTALLING .
Expanding Clip
- Quantity: 3
Bolt
- 2 Nm
- Quantity: 4
Clip
- Quantity: 6
- Insert in the rear shelf
- Remove any remaining clips in the body mounting points using the Omega Clip Tool :T40280 . To install, insert into the rear shelf.
- Replace damaged or deformed clips
