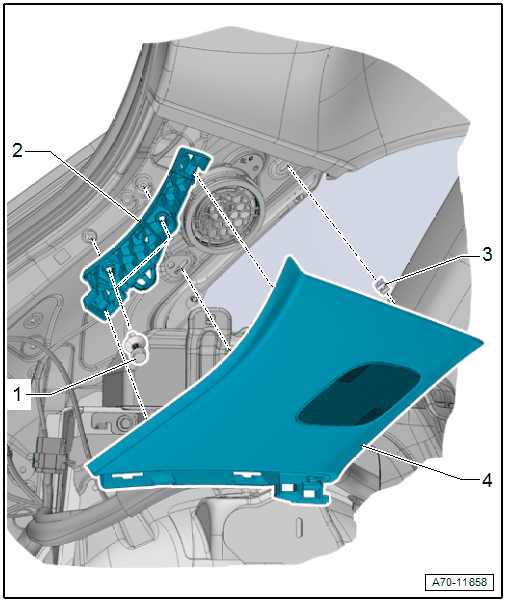

Overview - D-Pillar Trim Panel, A3 SPORTBACK
WARNING: This page is about a different variant/trim than selected.
- Expanding Clip
- Quantity: 2
- Remove using the Pliers :T40172C
- Bracket
- For the D-pillar trim
- Removing and Installing. Refer to D-PILLAR TRIM PANEL, REMOVING AND INSTALLING .
- Clip
- Quantity: 2
- Insert in the trim panel
- Remove any remaining clips in the body mounting points using the Omega Clip Tool :T40280 . To install, insert into the trim panel.
- Replace damaged or deformed clips
- D-Pillar Trim Panel
- Removing and Installing. Refer to D-PILLAR TRIM, REMOVING AND INSTALLING, A3 SPORTBACK .
- Press on until it engages audibly
- Stretch the lip of the rear lid seal over
