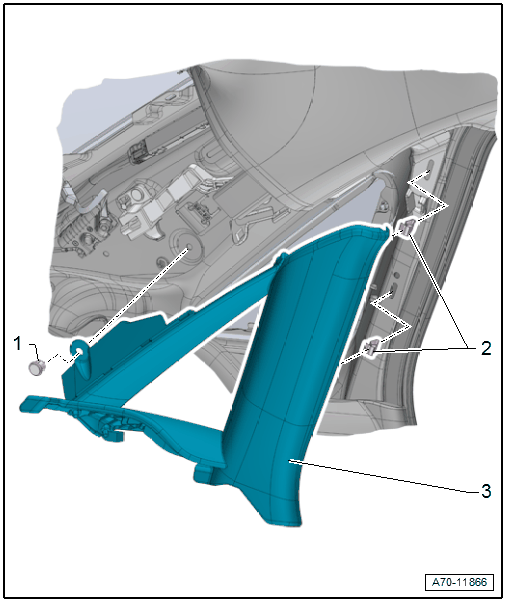

Overview - C-Pillar Trim Panel, Sedan
WARNING: This page is about a different variant/trim than selected.
- Expanding Clip
- Clip
- Quantity: 2
- Insert in the trim panel
- Remove any remaining clips in the body mounting points using the Omega Clip Tool :T40280 . To install, insert into the trim panel.
- Replace damaged or deformed clips
- C-Pillar Trim Panel
- Removing and Installing. Refer to C-PILLAR-TRIM PANEL, REMOVING AND INSTALLING, SEDAN .
- Press on until it engages audibly
- Stretch the door seal lip over
