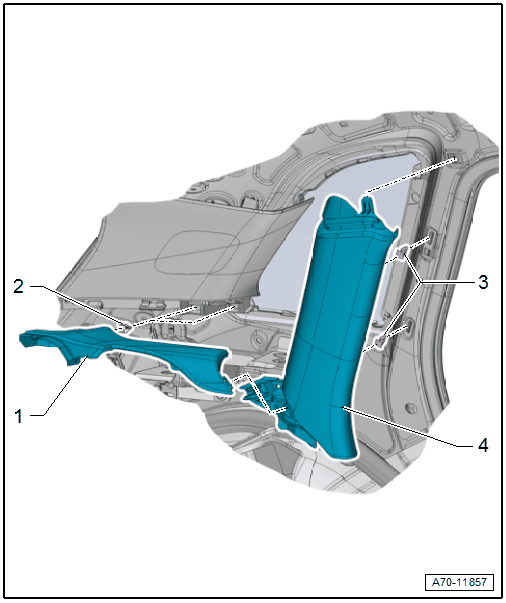

Overview - C-Pillar Trim Panel, A3 SPORTBACK
WARNING: This page is about a different variant/trim than selected.
- Intermediate Cover
- Removing and Installing. Refer to INTERMEDIATE COVER, REMOVING AND INSTALLING, A3 SPORTBACK .
- Clip in the C/D-pillar trim.
- Clip
- Quantity: 2
- Install in the intermediate cover.
- Remove the remaining clamps in the D-pillar trim and to install place in the cover.
- Replace any damaged or deformed clips
- Clip
- Quantity: 2
- Insert in the trim panel
- Remove any remaining clips in the body mounting points using the Omega Clip Tool :T40280 . To install, insert into the trim panel.
- Replace damaged or deformed clips
- C-Pillar Trim Panel
- Removing and Installing. Refer to C-PILLAR TRIM, REMOVING AND INSTALLING, A3 SPORTBACK .
- Insert in the upper part of the mounting point on the roof and clip into the C-pillar
- Press on until it engages audibly
- Stretch the door seal lip over
