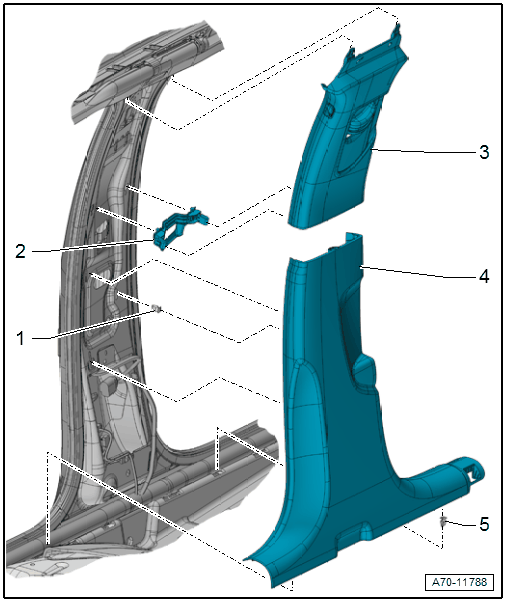

Overview - B-Pillar Trim Panel, A3 SPORTBACK, Not A3 E-Tron

Courtesy of AUDI OF AMERICA, LLC

1. Clip
   • Quantity: 3
   • Insert in the trim panel
   • Remove any remaining clips in the body mounting points using the Omega Clip Tool :T40280  . To install, insert into the trim panel.
   • Replace damaged or deformed clips
2. Upper B-Pillar Trim Bracket
   • Removing and Installing. Refer to UPPER B-PILLAR TRIM, REMOVING AND INSTALLING, A3 SPORTBACK/SEDAN .
   • Clipped in the B-pillar
   • Press on until it engages audibly
3. B-Pillar Upper Trim Panel
   • Removing and Installing. Refer to UPPER B-PILLAR TRIM, REMOVING AND INSTALLING, A3 SPORTBACK/SEDAN .
   • Insert in the upper part of the mounting points on the roof and clip into the bracket
   • Press on until it engages audibly
   • Stretch the door seal lip over.
4. B-Pillar Lower Trim Panel
   • Removing and Installing. Refer to B-PILLAR LOWER TRIM PANEL, REMOVING AND INSTALLING, A3 SPORTBACK, NOT A3 E-TRON .
   • Under in the mounting point on the side sill, and clipped in the side sill.
   • Clipped in the B-pillar
   • Press on until it engages audibly
   • Stretch the door seal lip over.
5. Clip
   • Quantity: 2
   • Insert in the trim panel
   • Remove any remaining clips in the body mounting points using the Omega Clip Tool :T40280  . To install, insert into the trim panel.
   • Replace damaged or deformed clips
