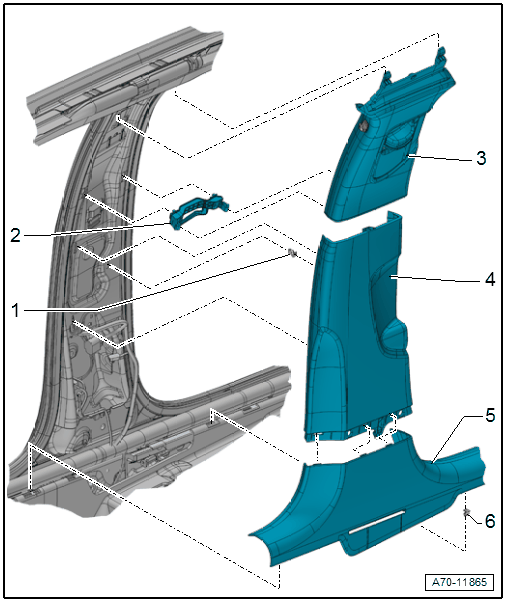

Overview - B-Pillar Trim Panel, A3 E-Tron/Sedan

WARNING: This page is about a different variant/trim than selected.

Courtesy of AUDI OF AMERICA, LLC

Clip
- Quantity: 3
- Insert in the trim panel
- Remove any remaining clips in the body mounting points using the Omega Clip Tool :T40280 . To install, insert into the trim panel.
- Replace damaged or deformed clips
Upper B-Pillar Trim Bracket
- Removing and Installing. Refer to UPPER B-PILLAR TRIM, REMOVING AND INSTALLING, A3 SPORTBACK/SEDAN .
- Clipped in the B-pillar
- Press on until it engages audibly
B-Pillar Upper Trim Panel
- Removing and Installing. Refer to UPPER B-PILLAR TRIM, REMOVING AND INSTALLING, A3 SPORTBACK/SEDAN .
- Insert in the upper part of the mounting points on the roof and clip into the bracket
- Press on until it engages audibly
- Stretch the door seal lip over.
B-Pillar Lower Trim Panel
- Removing and Installing. Refer to B-PILLAR LOWER TRIM PANEL, REMOVING AND INSTALLING, A3 E-TRON/SEDAN .
- Under in the mounting point on the side sill, and clipped in the side sill.
- Clipped in the B-pillar
- Press on until it engages audibly
- Stretch the door seal lip over.
Sill Panel
- Removing and Installing. Refer to FRONT SILL PANEL, REMOVING AND INSTALLING, A3 E-TRON/SEDAN .
- Engage the sill panel strip in the B-pillar trim.
- Press on until it engages audibly
- Stretch the door seal lip over
Clip
- Quantity: 5
- Insert in the sill panel
- Remove any remaining clips in the body mounting points using the Omega Clip Tool :T40280 . To install, insert into the sill panel strip.
- Replace damaged or deformed clips

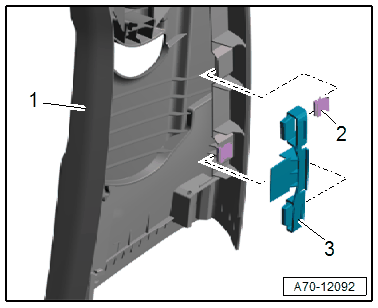

Upper B-Pillar Trim Deformation Element, Market-Specific

Courtesy of AUDI OF AMERICA, LLC
