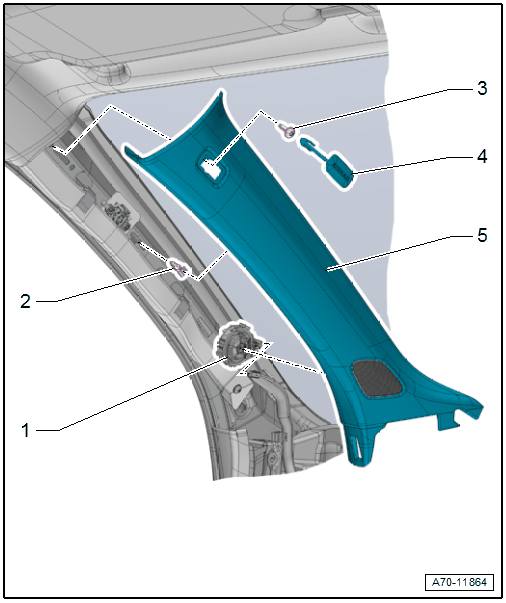

Overview - A-Pillar Upper Trim Panel, A3 E-Tron/Sedan
WARNING: This page is about a different variant/trim than selected.
- Treble Speaker
- Removing and Installing. Refer to COMPONENT LOCATION OVERVIEW - SOUND SYSTEM .
- Clip
- With hooks
- Replace after removing.
- Insert in the trim panel
- Remove the clips that are still in the mounting points on the body using Omega Clip Tool :T40280 .
- Bolt
- 3.5 Nm
- Cap
- With the "Airbag" symbol
- Carefully unclip
- A-Pillar Upper Trim Panel
- Removing and Installing. Refer to A-PILLAR UPPER TRIM PANEL, REMOVING AND INSTALLING, A3 E-TRON/SEDAN .
- Press on until it engages audibly
- Stretch the door seal lip over
