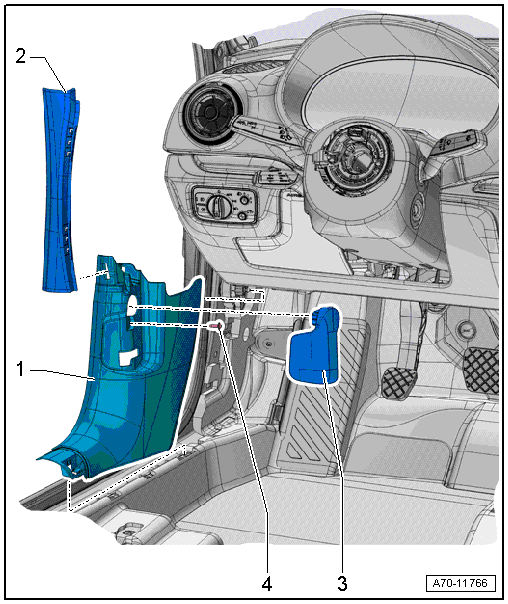

Overview - A-Pillar Lower Trim Panel, A3/A3 E-Tron/Sedan
WARNING: This page is about a different variant/trim than selected.
- A-Pillar Lower Trim Panel
- Removing and Installing. Refer to A-PILLAR LOWER TRIM PANEL, REMOVING AND INSTALLING, A3/A3 E-TRON/SEDAN .
- Pushed forward in the carpet
- Stretch the door seal lip over
- A-Pillar Gap Cover
- Removing and Installing. Refer to A-PILLAR TRIM PANEL, REMOVING AND INSTALLING .
- Clip in the A-pillar upper trim panel and A-pillar lower trim panel
- Stretch the door seal lip over
- Operating Lever Handle
- For the latch
- Only driver side
- Removing And Installing. Refer to LATCH RELEASE LEVER, REMOVING AND INSTALLING .
- Bolt
- 2.5 Nm
- Only driver side
