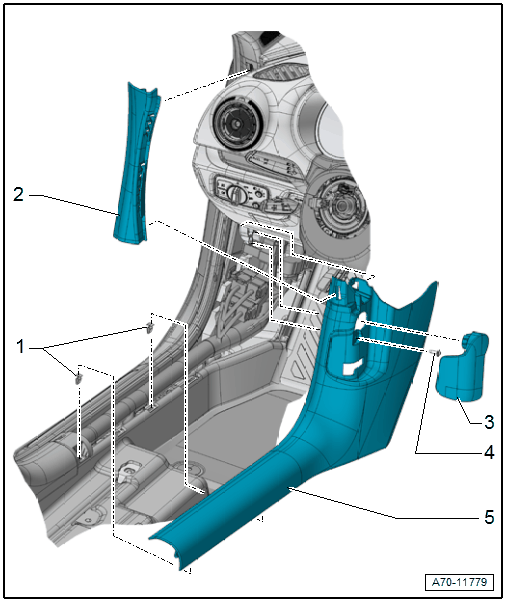

Overview - A-Pillar Lower Trim Panel, A3 SPORTBACK, Not A3 E-Tron

Courtesy of AUDI OF AMERICA, LLC

1. Clip
   • Quantity: 2
   • Insert in the trim panel
   • Remove any remaining clips in the body mounting points using the Omega Clip Tool :T40280  . To install, insert into the trim panel.
   • Replace damaged or deformed clips
2. A-Pillar Gap Cover
   • Removing and Installing. Refer to A-PILLAR TRIM PANEL, REMOVING AND INSTALLING .
   • Clip in the A-pillar upper trim panel and A-pillar lower trim panel
   • Stretch the door seal lip over
3. Operating Lever Handle
   • For the latch
   • Only driver side
   • Removing and installing. Refer to LATCH RELEASE LEVER, REMOVING AND INSTALLING .
4. Bolt
   • 2.5 Nm
   • Only driver side
5. A-Pillar Lower Trim Panel
   • Removing and Installing. Refer to A-PILLAR LOWER TRIM PANEL, REMOVING AND INSTALLING, A3 SPORTBACK, NOT A3 E-TRON .
   • Pushed forward in the carpet
   • Stretch the door seal lip over
