Trim Molding, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the door trim panel. Refer to REAR DOOR TRIM PANEL, REMOVING AND INSTALLING .

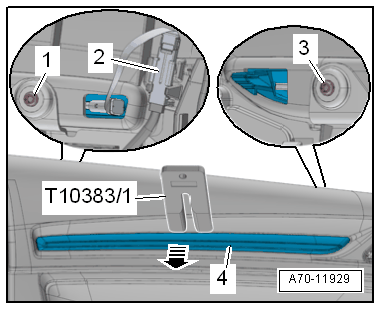

-- Remove the bolts -1 and 3-.
-- Vehicles with ambient lighting: disconnect the connector -2- for the ambient lighting bulb.
-- Carefully pry out the trim -4- along the door trim seam -arrow- using the :T10383/1 and remove it.
-- Disengage and remove the hooks from the cut-out of the door trim.
