Rear Armrest, Removing And Installing: Removing

-- Remove the door trim panel. Refer to REAR DOOR TRIM PANEL, REMOVING AND INSTALLING .

-- Remove the insulation mat.

-- Remove The Window Regulator Switch Refer to OVERVIEW - REAR DOOR CONTROLS / WINDOW REGULATOR, REMOVING AND INSTALLING .

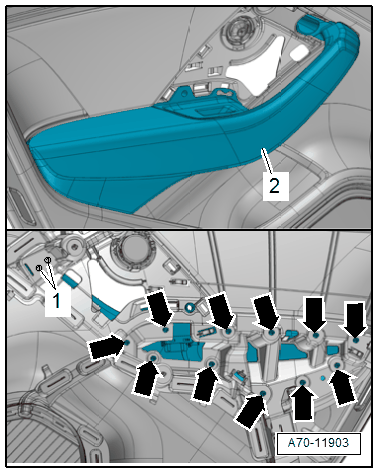

-- Remove the bolts -1- on the rear of the door trim.

Courtesy of AUDI OF AMERICA, LLC

-- Drill the attachment points -arrows- on the armrest with a drill to 6.5 mm diameter from the door trim far enough that the armrest loosens from the door trim.

-- Carefully loosen the attachment points one after another and remove the armrest -2- from the door trim.

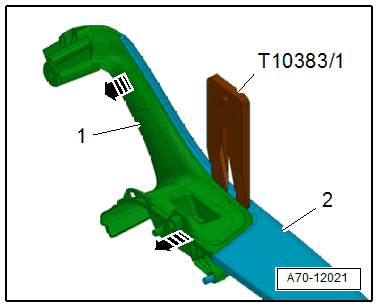

-- Unclip the pull handle -1- with the switch mount from the arm rest -2- using the :T10383/1  -arrows- and remove.

Courtesy of AUDI OF AMERICA, LLC
