Rear Armrest, Removing And Installing: Installing
WARNING: This page is about a different variant/trim than selected.
Install In Reverse Order Of Removal And Note The Following:

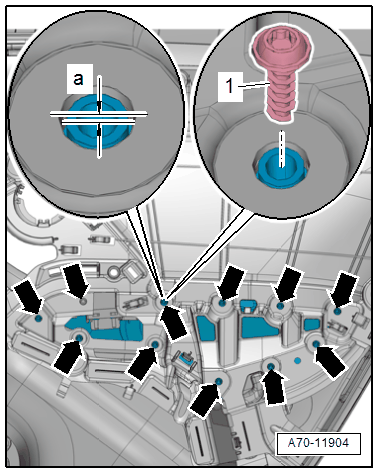

-- Shorten the new arrest at the locations indicated by -arrows- to the dimension -a- = 0.2 mm under the attachment bonding surface.
- Dimension -a- = 0.2 mm
-- When using an already welded armrest drill the bonding surface to approximately 3.0 mm in diameter.
-- Place the armrest in the door trim and tighten the plastic dome with bolt -1-.
