Overview - Rear Door Trim Panel

WARNING: This page is about a different variant/trim than selected.

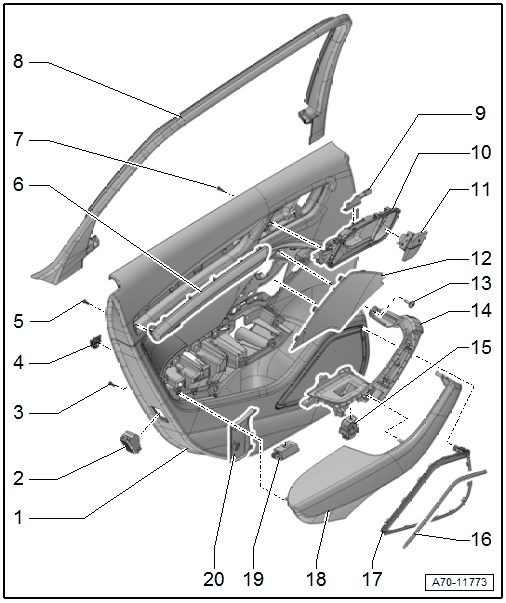

Fig 1: Exploded View Of Rear Door Trim Panel

Courtesy of AUDI OF AMERICA, LLC

Door Trim Panel
- Removing and Installing. Refer to REAR DOOR TRIM PANEL, REMOVING AND INSTALLING .
Rear Reflector
- Vehicle versions: left Driver Side Rear Door Warning Lamp -W90-
- Vehicle versions: right Passenger Side Rear Door Warning Lamp -W91-
- Component Location Overview. Refer to OVERVIEW - REAR DOOR CONTROLS .
Bolt
- 1.2 Nm
- For pull handle/armrest
- Quantity: 13
Clip
- For door trim panel
- Quantity: 7
- Insert in the trim panel
Bolt
- 1.2 Nm
- For trim panel
- Quantity: 2
Decorative Trim
- Vehicle versions: left Driver Side Rear Door Ambient Light Lamp -W88-
- Vehicle versions: right Front Passenger Side Rear Door Ambient Light Lamp -W89-
- Removing and Installing. Refer to TRIM MOLDING, REMOVING AND INSTALLING .
Bolt
- 1.2 Nm
- For the interior door mechanism
- Quantity: 5
Trim Panel
- For window frame
- Removing and Installing. Refer to WINDOW FRAME TRIM PANEL, REMOVING AND INSTALLING .
Left Rear Door Opener Illumination Bulb -L110-
- Passenger side: Right Rear Door Opener Illumination Bulb -L111-
- Equipped on some models
- Component Location Overview. Refer to OVERVIEW - REAR DOOR CONTROLS .
Interior Door Mechanism
- Removing and Installing. Refer to INTERIOR DOOR MECHANISM, REMOVING AND INSTALLING .
Driver Side Rear Interior Locking Button -E717-
- Passenger side: Passenger Side Rear Interior Locking Button -E718-
- Component Location Overview. Refer to OVERVIEW - REAR DOOR CONTROLS .
Speaker Trim
- Removing and Installing. Refer to REAR DOOR TRIM PANEL, REMOVING AND INSTALLING .
- Engage in the door trim panel and press on it until it engages audibly
Bolt
- 2.5 Nm
- For door trim panel
- Quantity: 3
Pull Handle
- With switch mount
- Removing and Installing. Refer to REAR ARMREST, REMOVING AND INSTALLING .
Driver Side Rear Power Window Button -E711-
- Passenger side: Passenger Side Rear Power Window Button -E713-
- Component Location Overview. Refer to OVERVIEW - REAR DOOR CONTROLS .
Trim
- For lamps
Lamp for Driver Side Rear Door Speaker Trim -L225-
- Passenger side: Lamp for Passenger Side Rear Door Speaker Trim -L226-
- Equipped on some models
- Component Location Overview. Refer to OVERVIEW - REAR DOOR CONTROLS .
Armrest
- Removing and Installing. Refer to REAR ARMREST, REMOVING AND INSTALLING .
Driver Side Rear Entry Lamp -W83-
- Passenger side: Passenger Side Rear Entry Lamp -W84-
- Equipped on some models
- Component Location Overview. Refer to OVERVIEW - REAR DOOR CONTROLS .
Cover
- Equipped on some models
- Clipped in the door pocket.
