Tail Lamp Cover, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

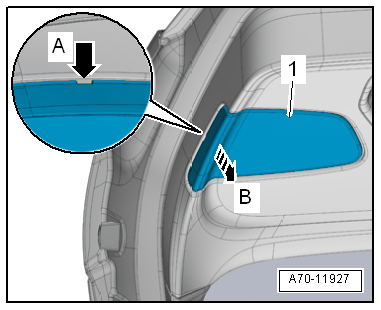

GWWA70-11927Courtesy of AUDI OF AMERICA, LLC

-- Place a small screwdriver in the opening -arrow A- and pry the cover -1- in the direction of -arrow B-.
