Rear Lid Upper Trim Panel, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the rear lid lower trim panel. Refer to REAR LID LOWER TRIM PANEL, REMOVING AND INSTALLING .

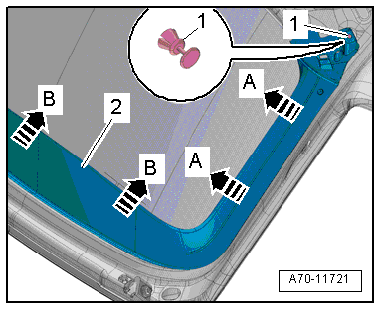

-- Remove the expanding clip -1-.

-- First unclip the trim panel -2- from the sides of the rear lid -A arrows- using the :80 - 200 .

-- Then unclip the trim panel using the :80 - 200 from the top of the rear lid -B arrows- and remove.
