Rear Lid Trim, Removing And Installing, Sedan: Removing

Courtesy of AUDI OF AMERICA, LLC

-- Unclip the rear lid latch trim panel -1- using the :T40233  in the direction of the -arrow-.

-- Remove the emergency triangle from the bracket by pressing the release.

Courtesy of AUDI OF AMERICA, LLC

-- Release the retaining tabs using a screwdriver -arrows- and remove the emergency triangle bracket -1-.

-- Unclip the stop strip -1- using the :3409  -arrow-.

Courtesy of AUDI OF AMERICA, LLC

-- Repeat the procedure on the opposite side.

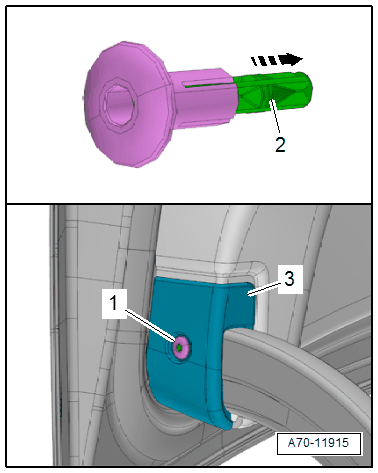

-- To remove the expanding clips -1- push the clamping pin -2- until it engaged audibly in the expanding clip -arrow- (do not push in completely, otherwise the clamping pin can fall in the cavity).

Courtesy of AUDI OF AMERICA, LLC

-- Remove the released expanding clip with a clamping pin.

-- Remove the gap cover -3- from the rear lid trim downward.

-- Repeat the procedure on the opposite side.

-- Remove the bolt -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Unclip the rear lid trim panel -1- starting at the top of the rear lid -A arrows- using the :80 - 200  .

Courtesy of AUDI OF AMERICA, LLC

-- Unclip the side of the rear lid trim panel from the rear lid -B arrows-.

-- Unclip the lower rear lid trim panel from the rear lid -C arrows- and remove.
