Overview - Rear Lid Lower Trim Panel, A3/A3 SPORTBACK

WARNING: This page is about a different variant/trim than selected.

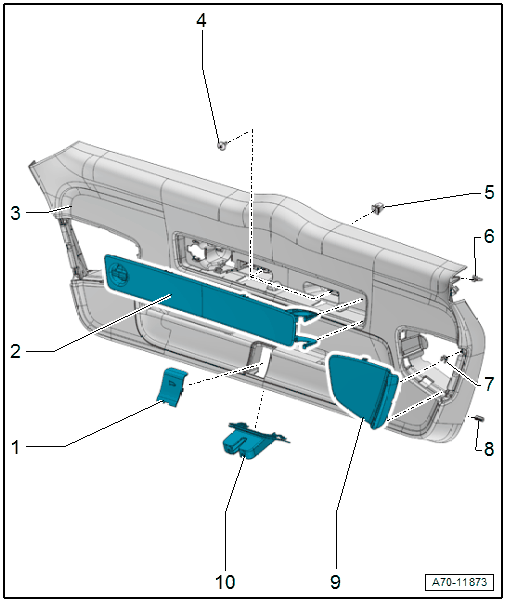

Fig 1: Exploded View Of Lower Rear Lid Trim Panel

Courtesy of AUDI OF AMERICA, LLC

Cover
- For the emergency release
- Unclip using the Trim Removal Wedge :3409
- Clipped in the rear lid trim panel
Cover
- For the warning triangle
- Removing and Installing. Refer to REAR LID LOWER TRIM PANEL, REMOVING AND INSTALLING, A3/A3 SPORTBACK .
- Engaged in the rear lid trim panel
Rear Lid Lower Trim Panel
- Removing and Installing. Refer to REAR LID LOWER TRIM PANEL, REMOVING AND INSTALLING, A3/A3 SPORTBACK .
- Press on until it engages audibly
Bolt
- 2 Nm
- Quantity: 2
Expanding Nut
- Quantity: 2
- Clip into rear lid
Clip
- Quantity: 10
- Insert in the trim panel
- Remove any remaining rear lid clips using Omega Clip Tool :T40280 and use them to install the trim.
- Replace damaged or deformed clips
Clip
- Quantity: 4
- Insert in the trim panel
- Replace damaged or deformed clips
Rubber Buffer
- Quantity: 6
- Insert in the trim panel
Cover
- For the tail lamp
- Quantity: 2
- Removing and Installing. Refer to TAIL LAMP COVER, REMOVING AND INSTALLING .
- Clipped in the rear lid trim panel
Rear Lid Latch Trim Panel
- Removing and Installing. Refer to REAR LID LOWER TRIM PANEL, REMOVING AND INSTALLING, A3/A3 SPORTBACK .
- Press on until it engages audibly
