Overview - Lower Rear Lid Trim Panel, Sedan: Notes

WARNING: This page is about a different variant/trim than selected.

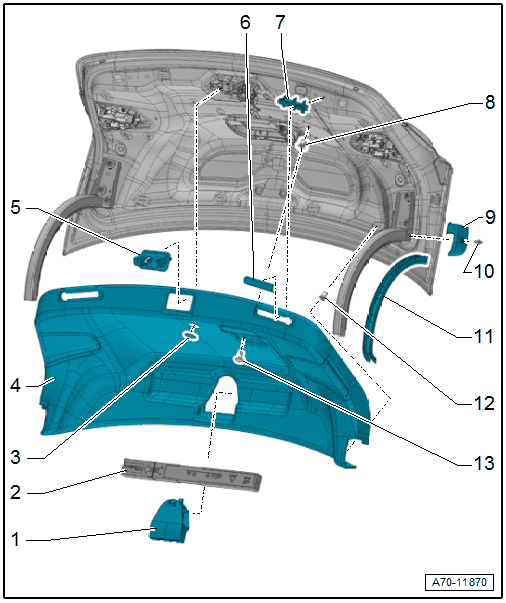

Fig 1: Exploded View Of Lower Rear Lid Trim Panel, Sedan

Courtesy of AUDI OF AMERICA, LLC

Bracket
- for the warning triangle
- Removing and Installing. Refer to REAR LID TRIM, REMOVING AND INSTALLING, SEDAN .
- Insert in the rear lid and press on it until it engages audibly
Emergency Triangle
Cover
- For the emergency release
- Country-specific: emergency release MARKET-SPECIFIC EMERGENCY RELEASE
- Clipped in the rear lid trim panel
Rear Lid Trim Panel
- Removing and Installing. Refer to REAR LID TRIM, REMOVING AND INSTALLING, SEDAN .
- Press on until it engages audibly
Rear Lid Latch Trim Panel
- Removing and Installing. Refer to REAR LID TRIM, REMOVING AND INSTALLING, SEDAN .
- Press on until it engages audibly
Stop Strip
- Quantity: 2
- Removing and Installing. Refer to REAR LID TRIM, REMOVING AND INSTALLING, SEDAN .
- Clip to the bracket
Bracket
- For the stop strip
- Quantity: 2
- Clip into rear lid
Expanding Nut
- Clip into rear lid
Gap Cover
- Quantity: 2
- Removing and Installing. Refer to REAR LID TRIM, REMOVING AND INSTALLING, SEDAN .
Expanding Clip
- Quantity: 2
- Install the expanding clip and push the clamping pin in flush
Cover
- for the wiring guide
- Quantity: 2
- Clipped in the rear lid hinge
Clip
- Quantity: 10
- Insert in the trim panel
- Remove any remaining rear lid clips using Omega Clip Tool :T40280 and use them to install the trim.
- Replace damaged or deformed clips
Bolt
- 2 Nm
