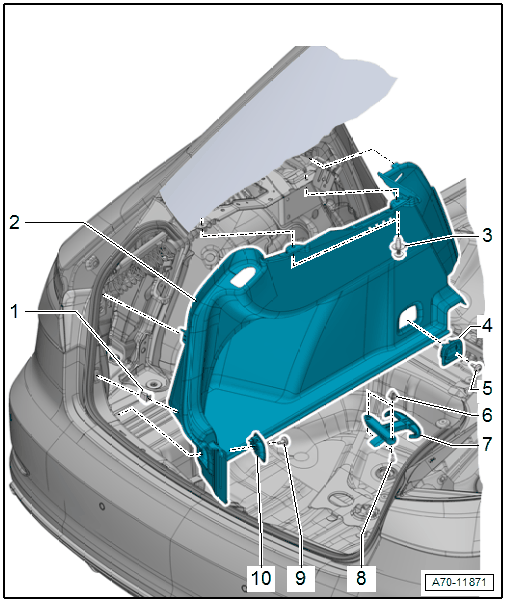

Overview - Luggage Compartment Side Trim Panel, Sedan
WARNING: This page is about a different variant/trim than selected.
- Clip
- Quantity: 2
- Insert in the trim panel
- Remove any remaining clips using Omega Clip Tool :T40280 and use them to install the trim.
- Replace damaged or deformed clips
- Luggage Compartment Side Trim Panel
- Removing and Installing. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING, SEDAN .
- Press on until it engages audibly
- Stretch the lip of the rear lid seal over
- Expanding Clip
- Quantity: 2
- Tie Down
- Removing and Installing. Refer to TIE DOWN, REMOVING AND INSTALLING .
- Bolt
- 8 Nm
- Metal clip
- Quantity: 4
- Clip into the body
- Bag Hooks
- Quantity: 2
- Equipped on some models
- Removing and Installing. Refer to UPPER BAG HOOKS, REMOVING AND INSTALLING .
- Bolt
- 1.5 Nm
- Quantity: 4
- Bolt
- 8 Nm
- Tie Down
- Removing and Installing. Refer to TIE DOWN, REMOVING AND INSTALLING .
